MSB Panel (With ACB)

PlanetCreator December 20, 2018

Main Switch Board Panel with Air Circuit Breaker

Main Switch Board Panel is factory assembled and applied for various industrial fields in low voltage power distribution system.
They are used to allocate electric power in power distribution network.
Our Main Switch Board Panel provides centralized control and protection of low voltage power equipment and circuits in industrial, commercial and utility installations involving transformers, generators, Motors and power feeder circuits.
Low Voltage Switchgear panel are acknowledged for the following features:
- Sturdy construction
- Easy maintenance
- Long electrical & mechanical service life
- High performance
Shall include Over, Earth fault current and Over Voltage, Under voltage protection as per customer request.

Panel Type	MSB (Main Switch-Board) Panel (With ACB)
Rated Current (In max)	1000A, 1250A, 1600A, 2000A, 2500A, 3200A, 4000A,5000A, 6300A
* Panel size can be changed depending on the environment in which it is applied.
Rated Operating Voltage (Ue)	690V
Frequency	50Hz/60Hz
Control Voltage	230VAC/ 400VAC
Rated Insulation Voltage (Ui)	1000V
Rated Impulse Withstand Voltage(Uimp)	12kV
Rated Breaking Capacity (Icu) (kA)	Up to 120kA At (220V/230V/380V/415V)
Rated Short-Time withstand Current (Icw) (kA) , 3sec	Up to 85kA
Metal Thickness (for Enclosure Body)	Up to 2.0mm
Metal Type	EGI (Electro Galvanized Iron) Sheet
Degree of Protection	IP3X~IP42
Colour	RAL7032, RAL7035, RAL7033Z
Cable Entry	Top/Bottom
Installation Type	Indoor
Applied Standard	IEC 61439-1/2
Form Of Separation	Form 1 to Form 3B

OLTC Control Panel

PlanetCreator December 20, 2018

OLTC Control Panel

Nowadays almost all the large transformer is provided with on-load tap changer.
Users can easily check the Winding temperature and Oil temperature, Tap Position of transformer through the panel status.
MYD’s OLTC control panel includes Annunciator (SEL, 36windows), WTI, OTI, TPI, VM, Key switch for Auto – Manual and Individual – Parallel operation, AVR and etc.
Any modification and designs can be negotiate upon prior request

Panel Type	OLTC Control Panel
Panel Size (Indoor)	600W x 2150H x 600D mm 800W x 2350H x 850D mm (Standard)
* Panel size can be changed depending on the environment in which it is applied.
Method of installation	Self-standing (With Panel Base )
Door handle	Handle with key
Wiring mark ( Hot mark )	Black letter and white background
Ground Bus	Copper ( 5tx30 mm)
Control Voltage	220/110V DC
Control cable	0.6/1.0kV, XHHW/SIS XLPE Insulated, PVC/Cu
Metal Thinkness	1.8mm~2.5mm
Painting Thickness	More than 80µm
Metal Type	EGI (Electro Galvanized Iron) Sheet
Degree of Protection	IP43
Colour	RAL7032, RAL7035, RAL7033Z
Cable Entry	Bottom
Installation Type	Indoor
Applied Standard	IEC 60529

Transformer Protection Panel

PlanetCreator December 20, 2018

Transformer Protection Panel

Prevention of electrical failures in protected facilities.
Protection the transformer damage.
Well protect transformer internal fault (current differential, overcurrent, earth fault, thermal fault and etc.)
Applicable to buildings, substations, power plants, and industrial facilities.
SEL (487E) relay is used as main protection for transformer and SEL (751) relay is used as backup protection.

Panel Type	230kV M.TR BAY PROT. & CONTROL PANEL
Panel Size (Indoor)	600W x 2150H x 600D mm 800W x 2350H x 850D mm (Standard)
* Panel size can be changed depending on the environment in which it is applied.
Method of installation	Self-standing (With Panel Base )
Door handle	Handle with key
Wiring mark ( Hot mark )	Black letter and white background
Ground Bus	Copper ( 5tx30 mm)
Control Voltage	220/110V DC
Control cable	0.6/1.0kV, XHHW/SIS XLPE Insulated, PVC/Cu
Metal Thickness(for Enclosure Body)	Up to 3mm
Painting Thickness	More than 80µm
Metal Type	EGI (Electro Galvanized Iron) Sheet
Degree of Protection	IP43
Colour	RAL7032, RAL7035, RAL7033Z
Cable Entry	Bottom
Installation Type	Indoor
Applied Standard	IEC 60529

Compact Enclosure (CE)

PlanetCreator December 20, 2018

Compact Enclosure (CE)

Features

Compact and suitable for Residential, commercial & Industrial use.
Easy and fast installation with minimum labor requirement.
Customized designs with tempered glass or acrylic type.
Indoor/outdoor, wall-mounted type.
Materials : Elector Galvanized Steel
Finishing : Quality finishes in epoxy/polyester powder coated and oven baked
Standard color : RAL 7032 (Pebble grey)
Protection degree : IP30
Thickness : 1~1.5 mm

* Other color and customized design are available upon request.

Standard Sizes (Indoor)

Code	W (mm)	H (mm)	D (mm)
MI00	200	300	150
MI0	250	350	150
MI1	300	450	170
MI2	350	520	170
MI3	400	570	200
MI4	440	610	230
MI5	570	690	250
MI6	600	760	250
MI7	640	920	250

Standard Sizes (Outdoor)

Code	W (mm)	H (mm)	D (mm)
MI00	225	375	165
MI0	275	425	165
MI1	325	525	185
MI2	375	595	185
MI3	425	645	215
MI4	465	685	245
MI5	595	765	245
MI6	625	835	265
MI7	665	995	265

Final Compact Enclosure (FCE)

PlanetCreator December 20, 2018

Final Compact Enclosure (FCE)

Features

Wall mounted type, suitable for Residential, commercial & Industrial use.
Quick Connect Terminals for ease and safety.
Including MCB cover plate, din rails, Earth-link cable, Stopper, Earth bar
and Neutral bar.
Ready to installs MCBs up to 100A .
From 12 modules (1 row) to 90 modules (5 rows).
IP 4X, Color code (RAL 7032, Pebble Grey).
Both top and bottom cable entry.
Doors can be easily removed by pulling clip-style hinge pins.
Right hinged doors, reversible.
Material thickness: 0.8 and 1 mm door, 0.8 and 1 mm body.
Mounting holes in back of body for direct mounting.

* Other color and customized design are available upon request.

Standard Sizes (Indoor)

Code	Description	Dimension	Maximum Single Pole MCB
FCE 1-12	12Pole, 1Row (12 Modules)	400W x 250 H x 120D	12 Nos
FCE 1-15	15Pole, 1Row (15 Modules)	450W x 250 H x 120D	15 Nos
FCE 1-18	18Pole, 1Row (18 Modules)	500W x 250 H x 120D	18 Nos
FCE 2-12	12Pole, 2Row (24 Modules)	400W x 400 H x 120D	24 Nos
FCE 2-15	15Pole, 2Row (30 Modules)	450W x 400 H x 120D	30 Nos
FCE 2-18	18Pole, 2Row (36 Modules)	500W x 400 H x 120D	36 Nos
FCE 3-12	12Pole, 3Row (36 Modules)	400W x 550 H x 120D	36 Nos
FCE 3-15	15Pole, 3Row (45 Modules)	450W x 550 H x 120D	45 Nos
FCE 3-18	18Pole, 3Row (54 Modules)	500W x 550 H x 120D	54 Nos
FCE 4-12	12Pole, 4Row (48 Modules)	400W x 750 H x 120D	48 Nos
FCE 4-15	15Pole, 4Row (60 Modules)	450W x 750 H x 120D	60 Nos
FCE 4-18	18Pole, 4Row (72 Modules)	500W x 750 H x 120D	72 Nos
FCE 5-12	12Pole, 5Row (60 Modules)	400W x 900 H x 120D	60 Nos
FCE 5-15	15Pole, 5Row (75 Modules)	450W x 900 H x 120D	75 Nos
FCE 5-18	18Pole, 5Row (90 Modules)	500W x 900 H x 120D	90 Nos

Cable Tray, Trunking and Ladder

PlanetCreator December 20, 2018

Cable Management

Cable Tray, Trunking and Ladder

MYD’s cable tray, trunking and ladder systems offer significant advantages over conduit
pipe and other wiring systems. Cable tray is more cost efficient, more reliable, more
adaptable to change needs and easier to maintain.

Suitable for Residential, commercial & Industrial use.
System’s reliability, adaptability, ease of maintenance and inherent safety features result
in many other types of cost
Easy and fast installation with minimum labor requirement.
Durable and protect against corrosion
Accessories : connectors, joints and earth links.
Materials : Electro Galvanized Steel
Finishing : Quality finishes in epoxy/polyester powder coated
Painting : High quality polyester power paint and oven baked

Cable Management

Type of Cable Tray, Trunking and Ladder

Straight, horizontal cross, horizontal elbow, vertical elbow, inside
& outside riser, inside & outside reducer, horizontal tee

Standard Dimensions (Tray, trunking & ladder)

Length 2440mm
Depth 25mm, 50mm, 75mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm
Width 50mm, 75mm, 100mm, 150mm, 200mm, 225mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 700mm.

Sheet Metal Thinkness

1.2mm for light loads
1.5mm for medium loads
2.0mm for heavy loads

Standard Color

RAL 7032 (Pebble Grey, Wrinkle type)
RAL 7035 (Light Grey, Wrinkle type)
RAL 2002 (Orange, Gloss type), Standard Color
RAL 7033 (Grey)

* Other color range and customized design are available upon prior request.

Fire Hose Reel Cabinet

PlanetCreator December 20, 2018

Fire Hose Cabinet

Features

Compact and suitable for Residential, commercial & Industrial use.
Easy and fast installation with minimum labor requirement.
Customized designs with tempered glass or acrylic type.
Indoor/outdoor, wall-mounted or stand type.
Can provide customer requested design with high IP rating.

Dimensions (Indoor)

500W x 550H x 200D (thickness; 1.2/1.5/2mm)
800W x 800H x 360D (thickness; 1.2/1.5/2mm)

Dimensions (Outdoor)

500W x 1150H x 200D (thickness; 1.2/1.5/2mm)
800W x 1400H x 360D (thickness; 1.2/1.5/2mm)
Materials : Electro Galvanized Steel
Finishing : Quality finishes in epoxy/polyester powder coated and oven baked
Standard color : M2041A (Fancy Red)
Protection degree : IP 4X

* Other color and customized design are available upon request.

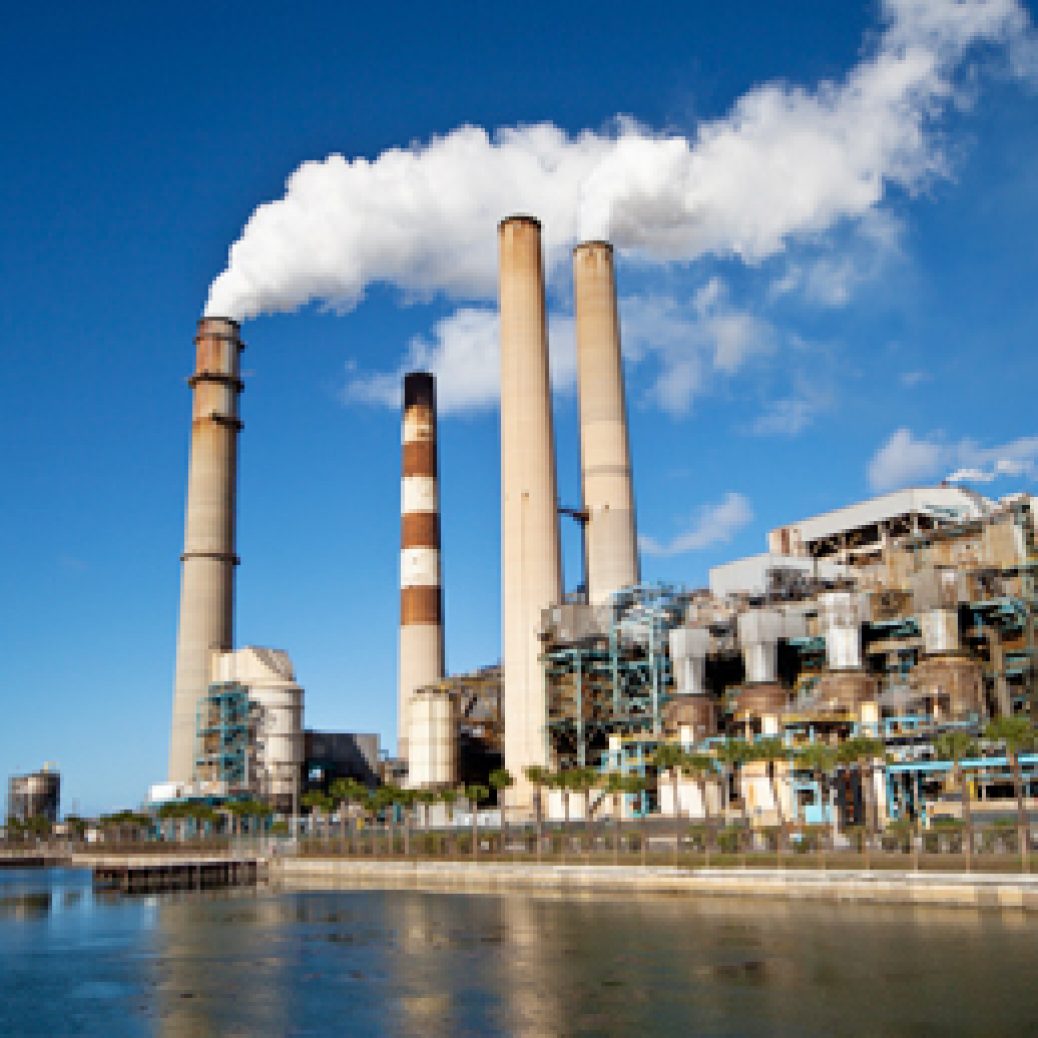

Power Generation Business

PlanetCreator July 8, 2018

YOUNG IN provides electrical design, construction inspection and supervision, and construction services for domestic and overseas power plants.

Transmission Business

PlanetCreator January 25, 2018

The experts in various fields at YOUNG IN provide customized turn-key services for design, construction inspection and supervision, and construction of transmission line.

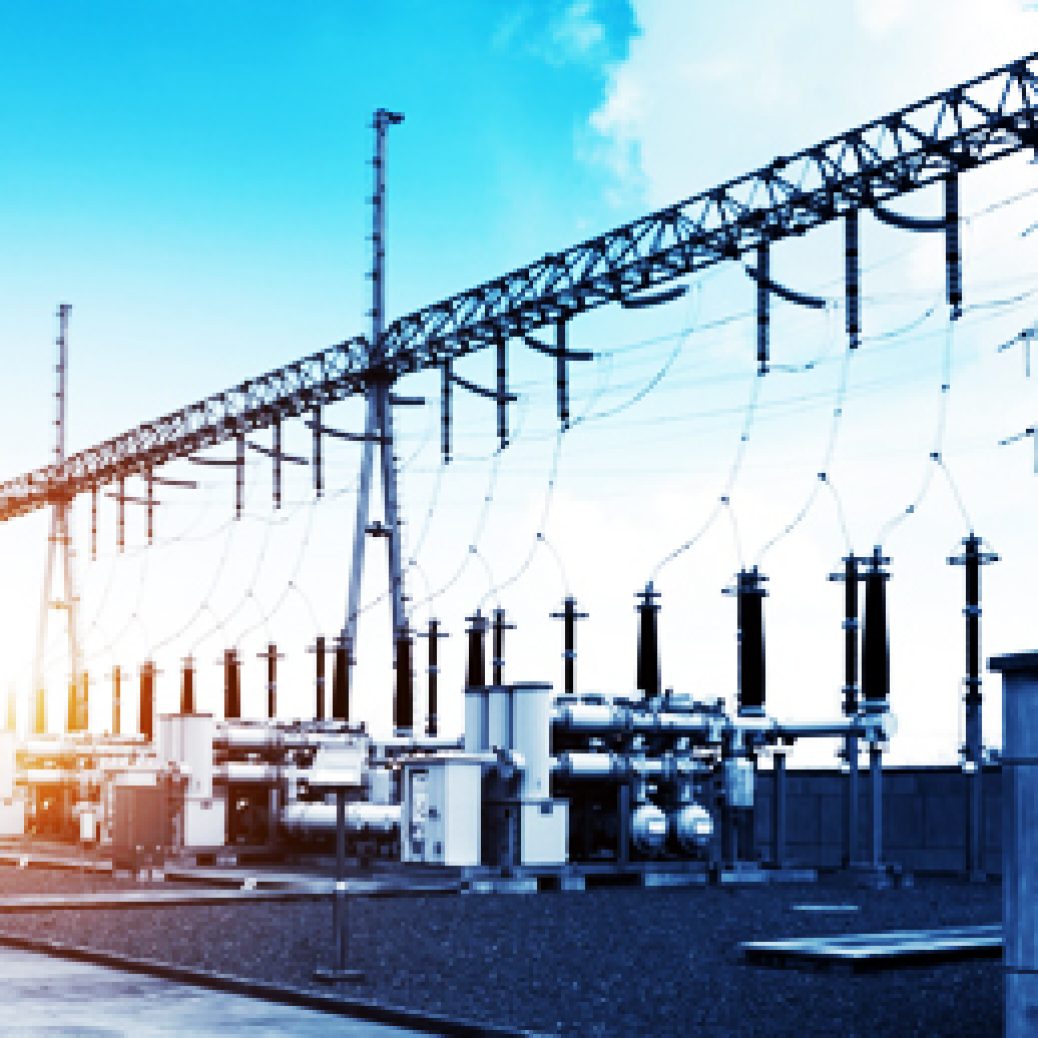

Substation Business

PlanetCreator January 1, 2018

YOUNG IN designs, inspects and supervises, and constructs different types
of substations in compliance with the technical standards of the Korea Electric Power Corporation (KEPCO), which define the standards for extra-high voltage substations in Korea.
